Series Starck 3 Sinks #030549
Sink #030549
Design by Philippe Starck
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Installation Type: Installation, 20 7/8 "x14 3/8 ", Includes faucet deck: No, Overflow: Yes, Ground, Installation Type: Undermount installation, Includes hardware for installation in wooden consoles, cUPC listed: Yes
Not available in Wondergliss
Variants
• White High Gloss |
20 7/8 "x7 1/8 " | 17.857 lb | 0305490017 | $ 275.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Downloads
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com

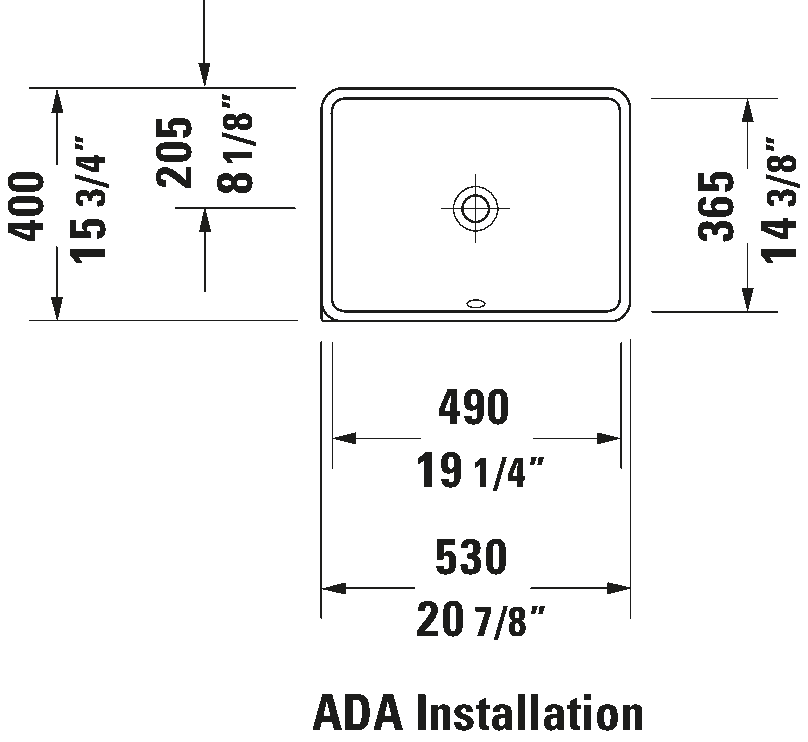

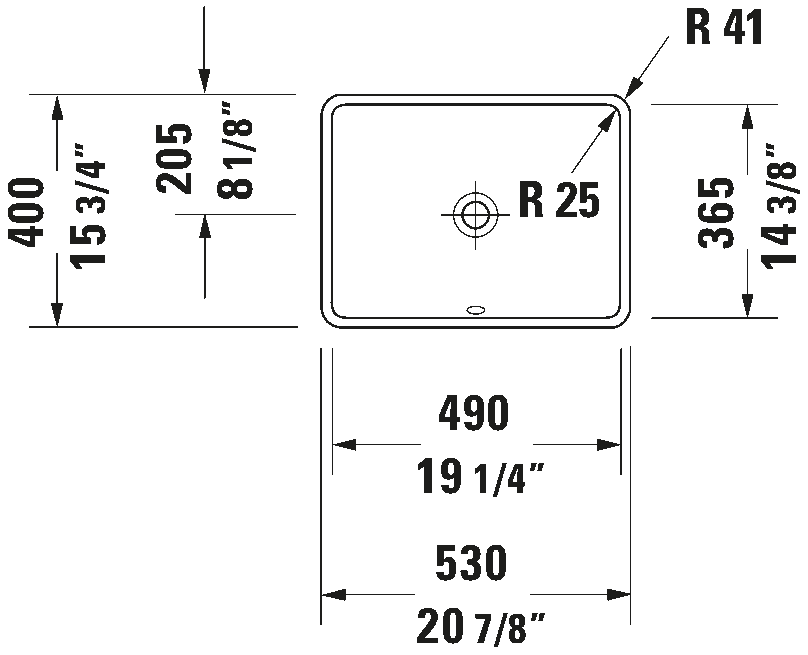

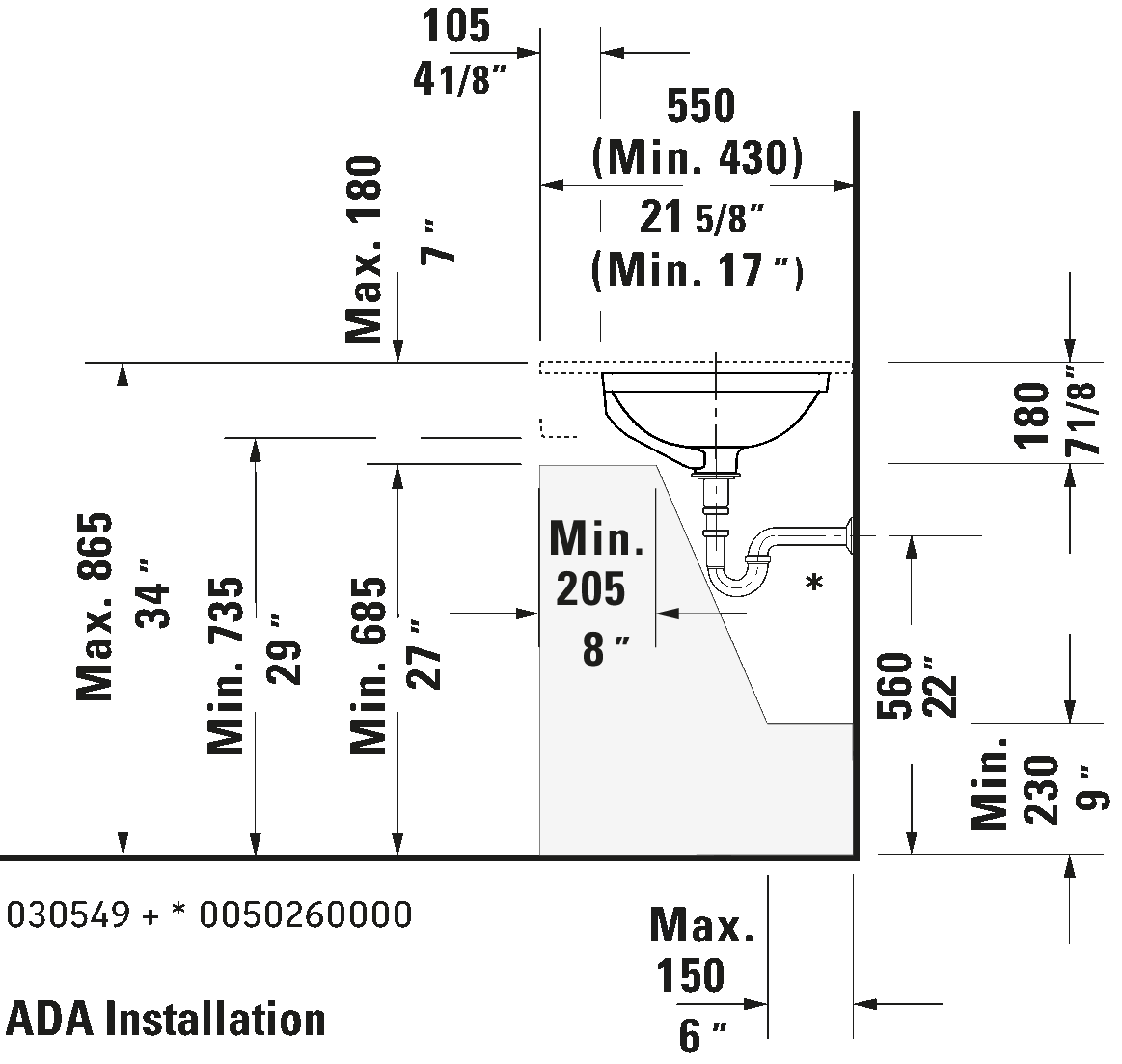

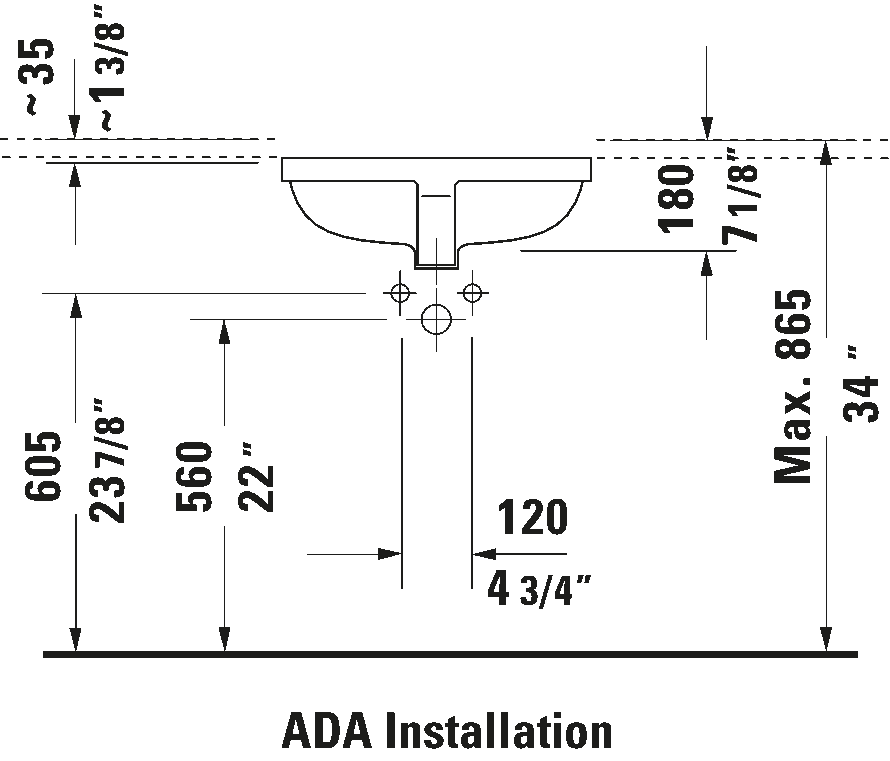

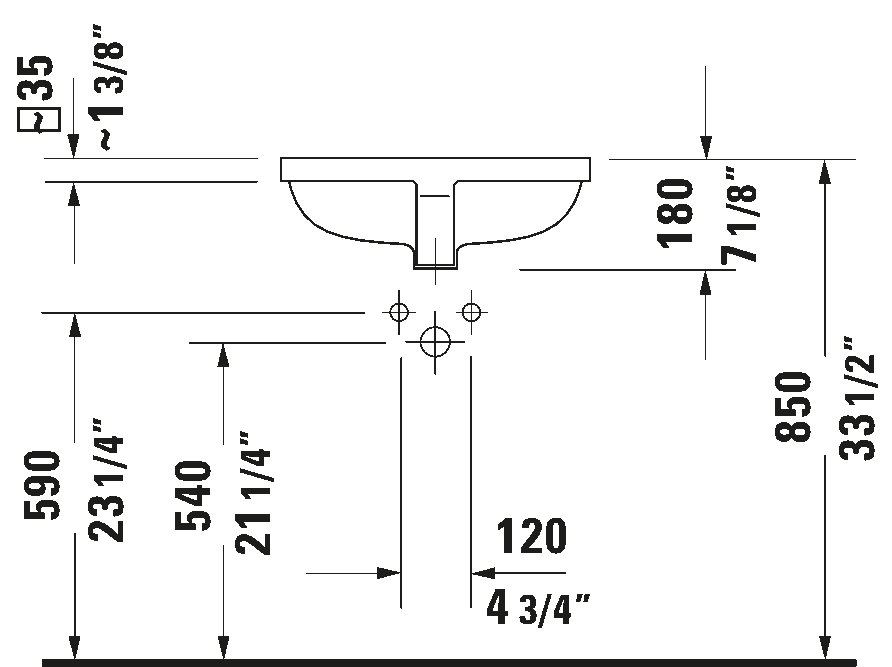

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
