Series D-Code Bathtubs #700406
Bathtub #700406
Design by sieger design
Item may differ from picture. Decorations and accessories are not included.

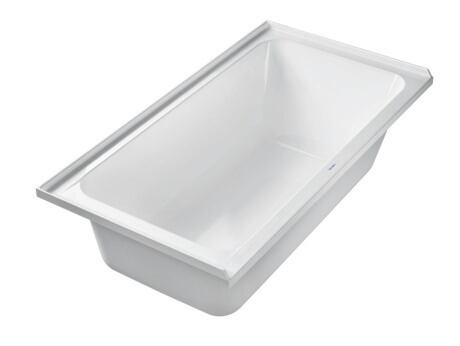

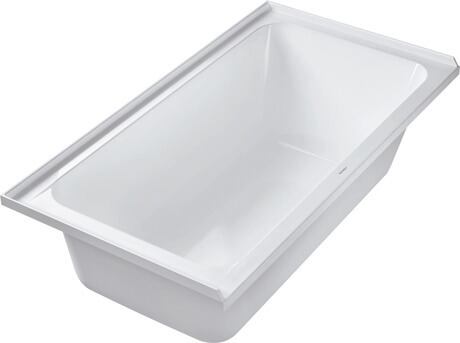

Rectangular, Installation Type: drop-in, White, Material: Sanitary acrylic, Number of backrests: 1 Right, Includes support frame, Overflow: Yes, Drain orientation: Left, Overflow position: Foot end, Capacity gal: 37 gal, Internal Depth: 15 3/4 ", cUPC listed: Yes
Variants
select| 60 "x16 1/2 " | 81.571 lb | 700406000000090 | $ 1,255.00 * | ||
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Suitable products
Downloads
Hint:
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
