Series Architec Bathtubs #700438
alcove tub #700438
Design by Prof. Frank Huster
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Rectangular, Installation Type: Alcove, Integrated acrylic panel front, White, Material: Sanitary acrylic, Number of backrests: 1 Left, Includes support frame, Overflow: Yes, Drain orientation: Above the ground, Right, Overflow position: Foot end, Capacity gal: 34 gal, Internal Depth: 18 7/8 ", cUPC listed: Yes
Variants
select| Seamless acrylic panel, Packaging type: Single-packed | 60 "x32 " | 110.231 lb | 700438000000090 | $ 1,180.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Suitable products
Downloads
Hint:

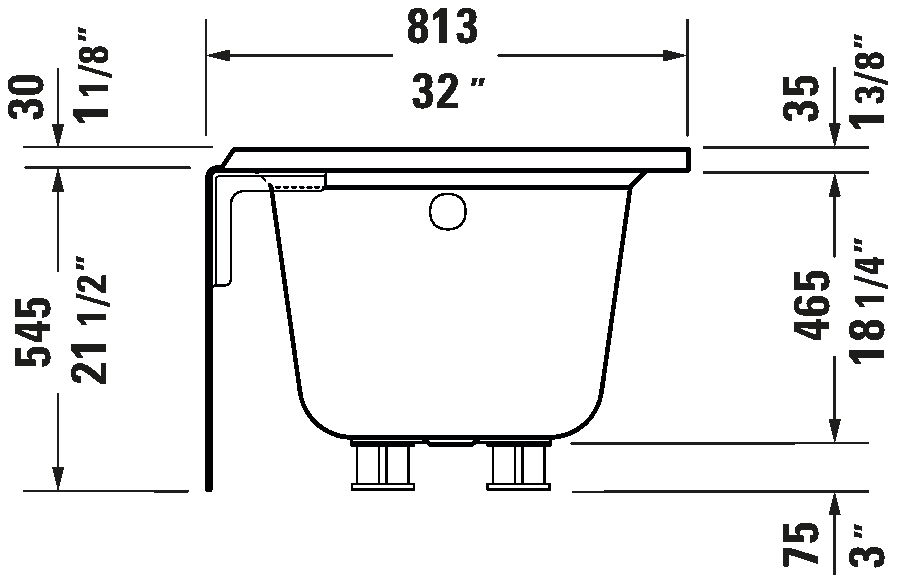

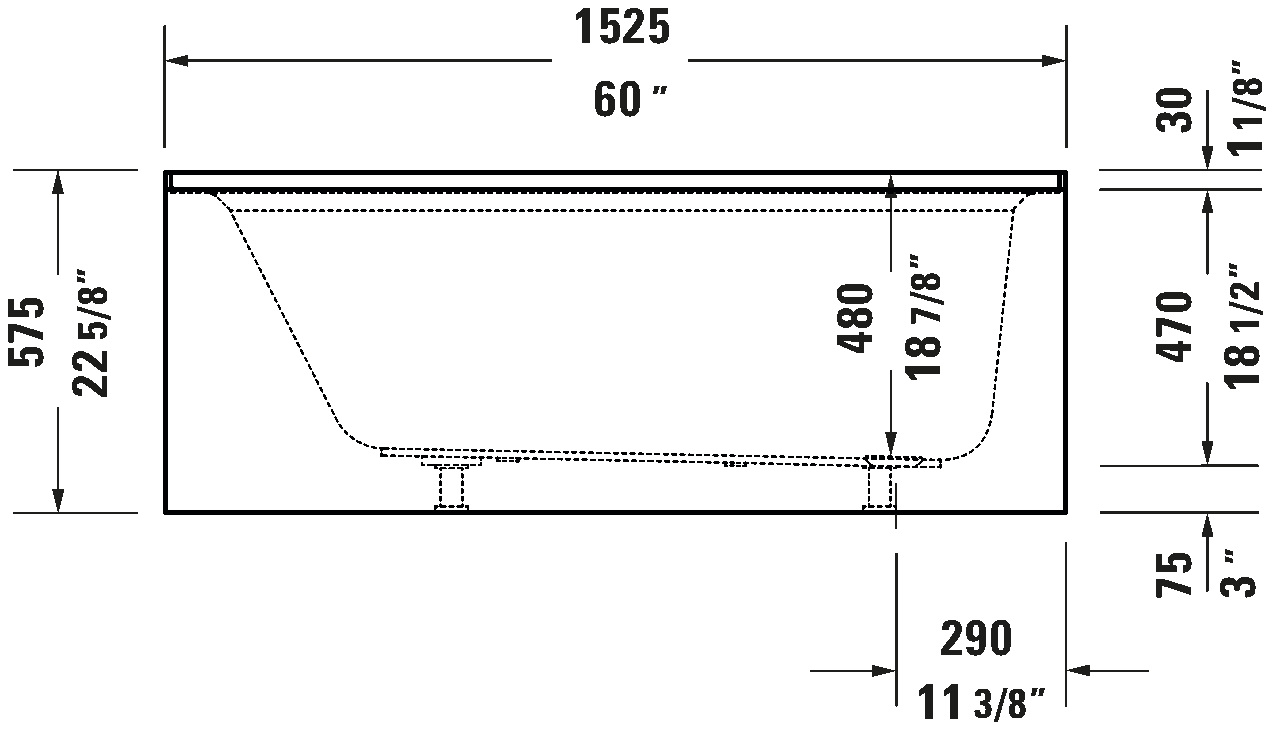

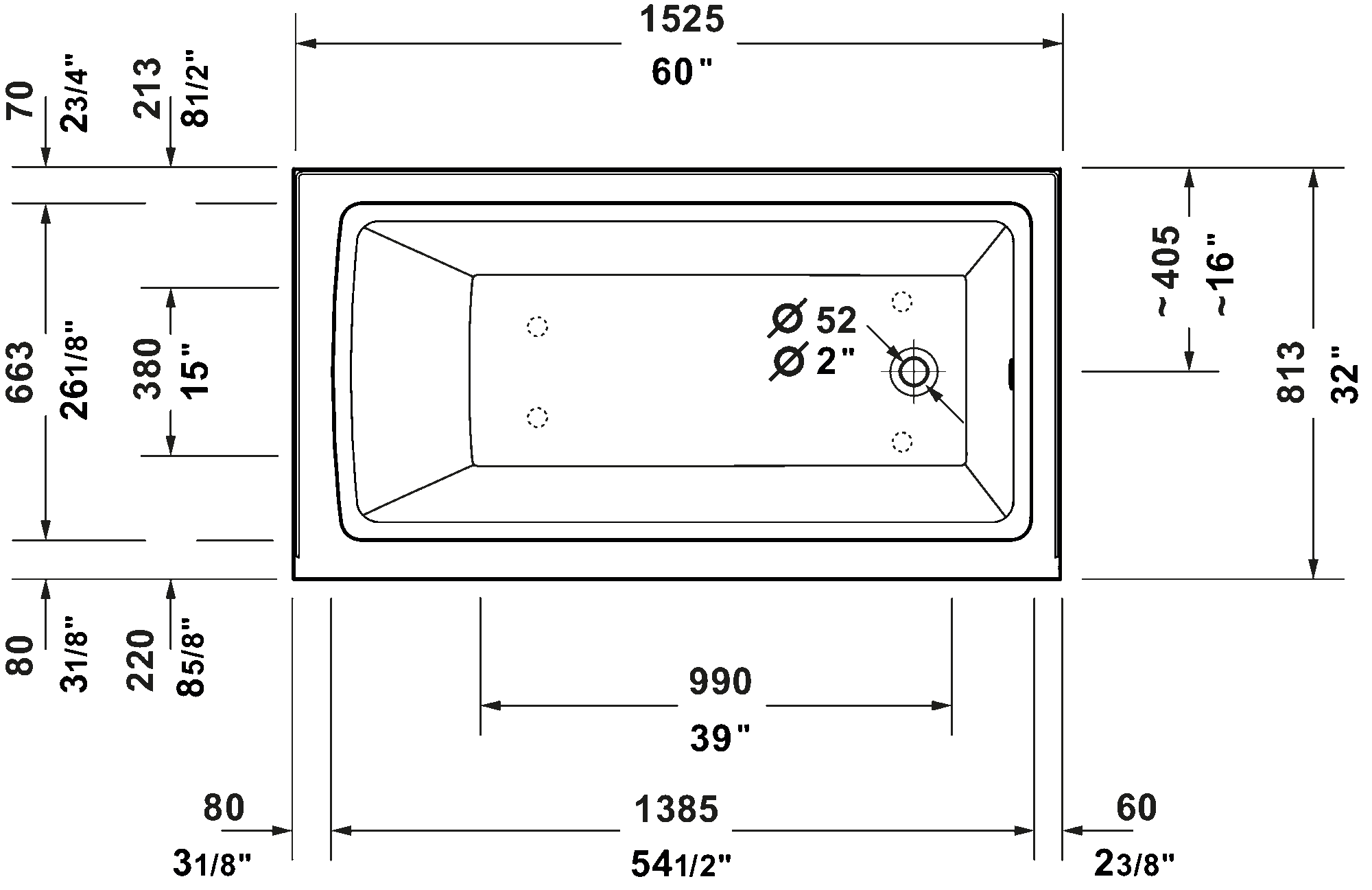

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
