Series Faucet Accessories Bathroom faucets #GK0900001

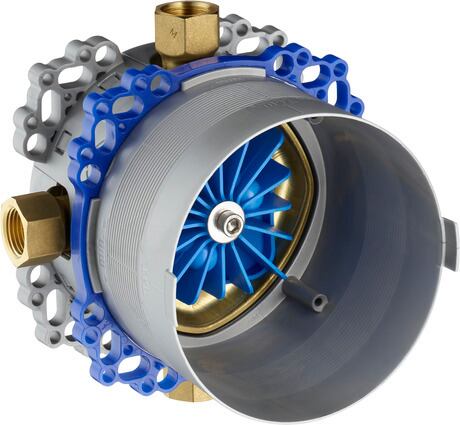

Rough In Valve #GK0900001
Design by Duravit
/website/html/default/1890.us-en.html?p=4221189
Rough In Valve, GK0900001U00 Installation Type: For concealed installation, Dimensions of water supply connection: 3/4 ", cUPC listed: Yes
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Shut-off valve: Yes
Variants
Installation Type: For concealed installation, Dimensions of water supply connection: 3/4 ", cUPC listed: Yes | 6 1/2 "x6 1/2 " | 3.086 lb | GK0900001U00 | $ 260.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Required accessories
Dimension | Weight | Order number | ||
|
Shower Trim | 3.968 lb | C14200013 | |
Number of outlets: 2, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Selection: Hand shower, Showerhead, Diverter: Shut-off and diverter valve, Number of outlets: 2, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Square, Including functional unit, Including trim parts | ||||
|
Shower Trim | 4.189 lb | C15200013 | |
Number of outlets: 2, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Selection: Tub filler, Hand shower, Diverter: Shut-off and diverter valve, Number of outlets: 2, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Square, Including functional unit, Including trim parts | ||||
|
Shower Trim | 3.968 lb | C14200014 | |
Number of outlets: 2, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Selection: Hand shower, Showerhead, Diverter: Shut-off and diverter valve, Number of outlets: 2, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Round, Diameter escutcheon: 6 3/4 ", Including functional unit, Including trim parts | ||||
|
Shower Trim | 3.968 lb | C14200015 | |
Number of outlets: 1, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Diverter: Shut-off valve, Number of outlets: 1, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Square, Including functional unit, Including trim parts | ||||
|
Shower Trim | 3.968 lb | C14200016 | |
Number of outlets: 1, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Diverter: Shut-off valve, Number of outlets: 1, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Round, Diameter escutcheon: 6 3/4 ", Including functional unit, Including trim parts | ||||
|
Shower Trim | 3.968 lb | C15200014 | |
Number of outlets: 2, Water supply connection type: Rough In Valve, Thermostat cartridge, Temperature block (100.4 °F), Selection: Tub filler, Hand shower, Diverter: Shut-off and diverter valve, Number of outlets: 2, recommended operating pressure: 14.5038 - 72.519 psi, Flow rate: 5.44 gal/min, Escutcheon shape: Round, Diameter escutcheon: 6 3/4 ", Including functional unit, Including trim parts |
Spare parts
Hint:
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
