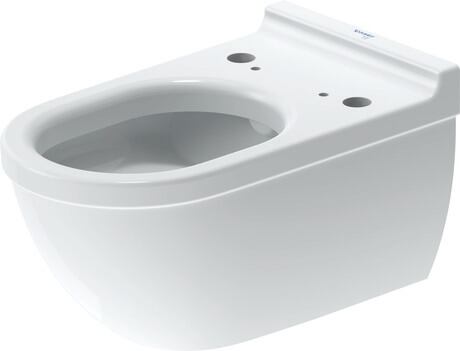

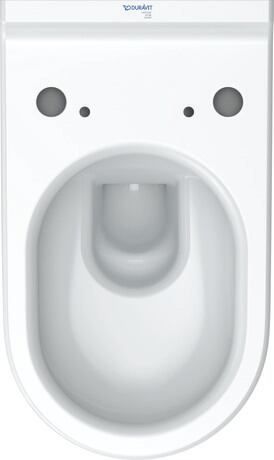

Series Starck 3 Toilets #222659

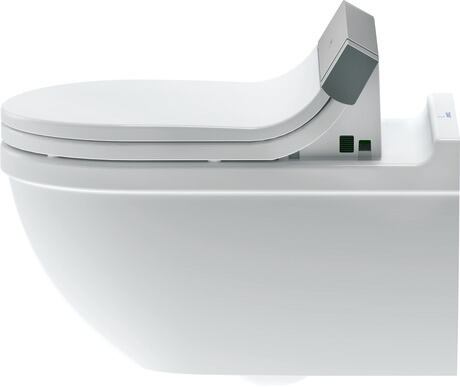

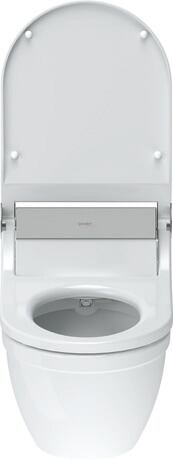

Toilet wall-mounted for SensoWash® #222659
Design by Philippe Starck
Item may differ from picture. Decorations and accessories are not included.
washdown model, only in combination with SensoWash, connecting elements for SensoWash with concealed connections included, Durafix included, cUPC® listed*, WaterSense® listed
Durafix for concealed installation is included, Wall-mounted toilet is ADA compliant, when installed with a seat height of 17" - 19" from the finished floor, * Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14, In-wall tank & carrier and actuator plate required for installation, If using in-wall tank & carrier other than DuraSystem, # 100691 is mandatory for SensoWash® installation
Color
Variants
select© 1.6/0.8 gpf |
14 5/8" x 24 3/8" Inch | 64 lb | 2226590092 | 590.00 $ * |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
| Dimension | Weight | Order number | ||
|
|
Noise reduction gasket | 0.7 lb | 005020 | |
| for wall-mounted toilet | ||||
|
Actuator plate A1, for toilet, plastic | 8 1/2" x 5 3/4" Inch | 0.7 lb | WD5008 |
| mechanical actuation, for surface mounted installation, dual flush, mounting frame, mounting hardware included, push rods, front plate plastic | ||||
|
Toilet in-wall tank & carrier, Standard | 23 1/4" x 45 1/4" Inch | 35.3 lb | WD1022 |
| WaterSense® listed, For 2"x4" and 2"x6" wall installation, for toilets with a projection of <= 24 5/8", adjustable feet 0" - 9 1/2", SensoWash ready, mechanical front flush actuation, includes in-wall tank, marking of filling height, dual flush, insulated against condensation, Scope of delivery, HDPE wall-mounted toilet connection bend DN 90/90, PE wall-mounted toilet connection set DN 90, wall-mounted mounting rods M12, mounting hardware included, 2 bolt caps, cUPC® listed*, Load capacity = 880 lbs | ||||
|
Connecting set | 100691 | ||
| in combination with SensoWash shower-toilet seat | ||||
|
Pre-installation set | 005072 | ||
| in combination with SensoWash, for in-wall carrier with horizontal support without shower toilet pre-installation/condiut pipe | ||||
Suitable products
Downloads
Hint:
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
