Series DuraStyle Washbasins #232012
Furniture washbasin #232012
Design by Matteo Thun & Antonio Rodriguez
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
with faucet deck, underside fully glazed, hardware included, wall-mounted, 47 1/4" Inch
When installing ceramics larger than 47 1/4", 2 sets of basin hardware # 6951000000 are required, Washbasin is not ADA compliant in combination with pedestal, siphon cover or metal console
Variants
selectp Color 00, with overflow |
47 1/4" x 18 7/8" Inch | 62.8 lb | 2320120000 | 1,230.00 $ * |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramics
| Dimension | Weight | Order number | ||
|
Push button drain assembly | 2" Inch | 0.8 lb | 005052 |
| for washbasins with overflow |
| Dimension | Weight | Order number | ||
|
Siphon for washbasin | 1 1/4" Inch | 1.3 lb | 005026 |
| with outlet pipe 11 3/4" |
Suitable products
Downloads
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com

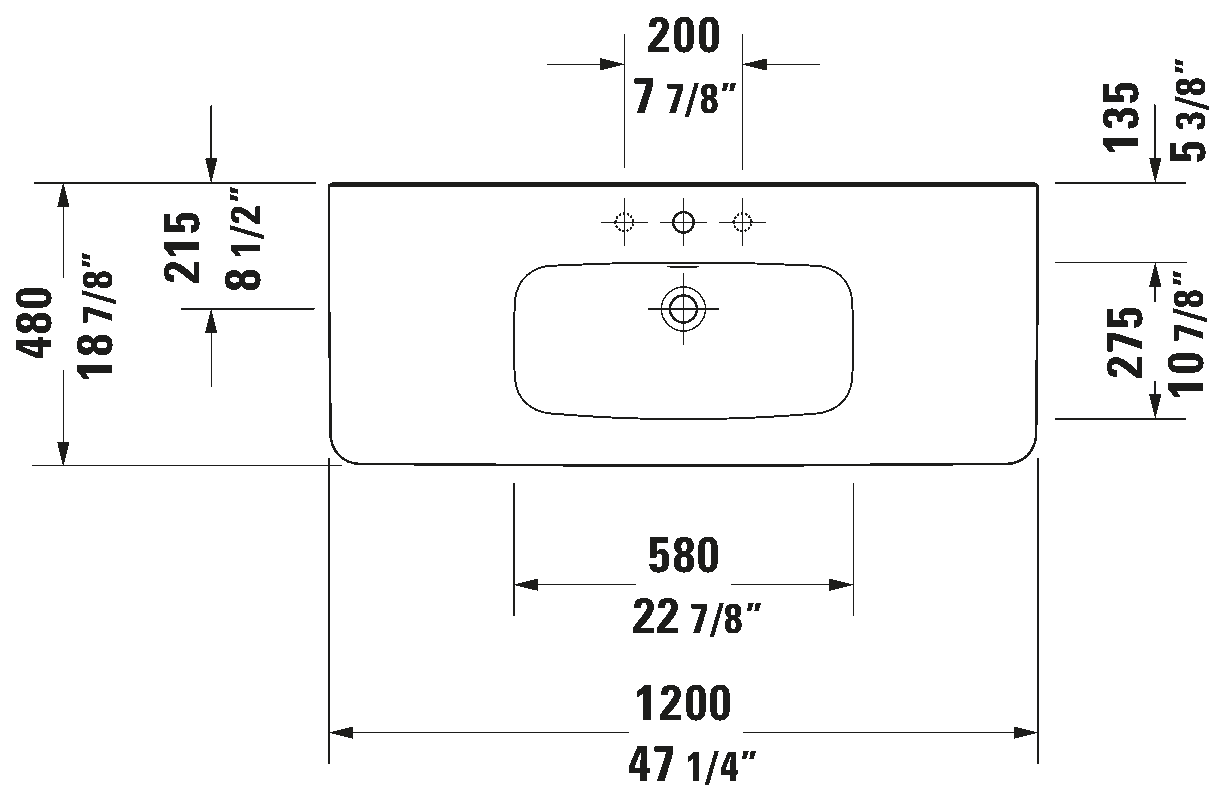

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
