Series D-Code Sinks #033856
Sink #033856
Design by sieger design
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Installation Type: Installation, 22 "x15 3/4 ", Includes faucet deck: No, Overflow: Yes, Installation Type: Undermount installation, Includes hardware for installation in wooden consoles, cUPC listed: Yes
Variants
• 22 "x16 7/8 ", White High Gloss |
22 "x8 1/4 " | 20.723 lb | 0338560000 | $ 225.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Spare parts
| Dimension | Weight | Order number | ||
|
Mounting Bracket | 3/8" | 0.441 lb | 005028 |
| Installation Type: in natural stone slabs, Suitable for Sink |
Downloads
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com

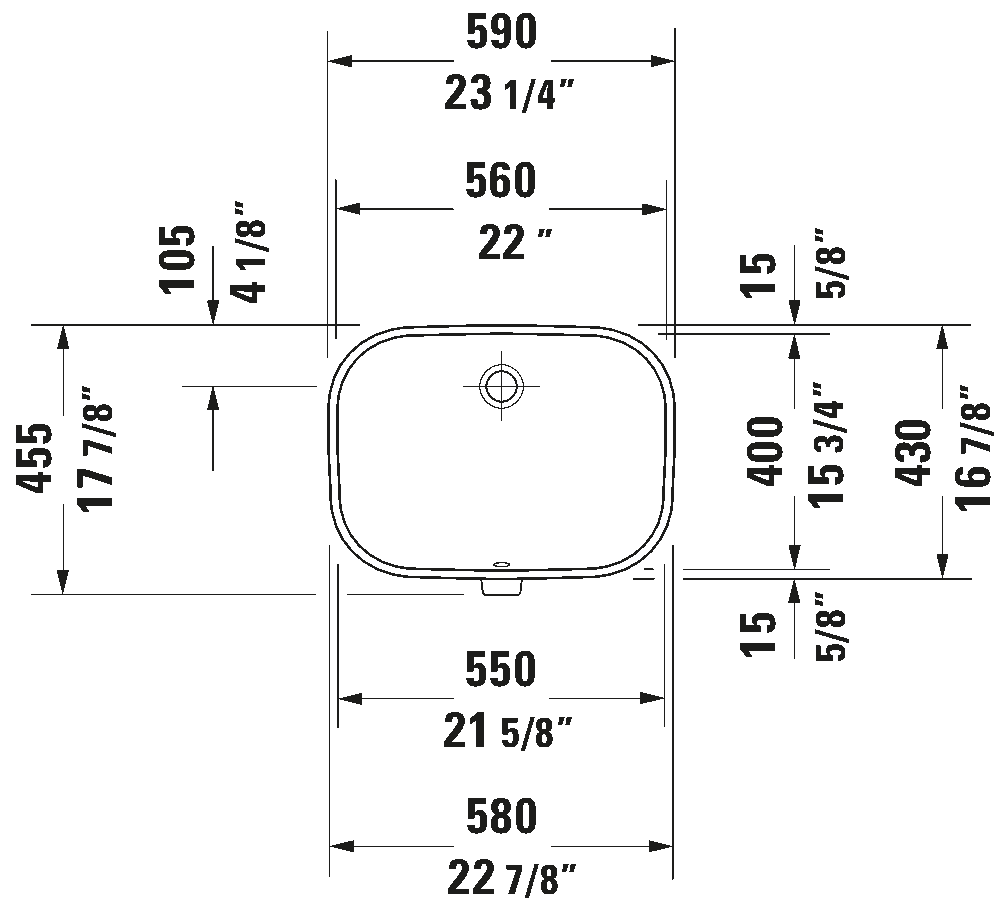

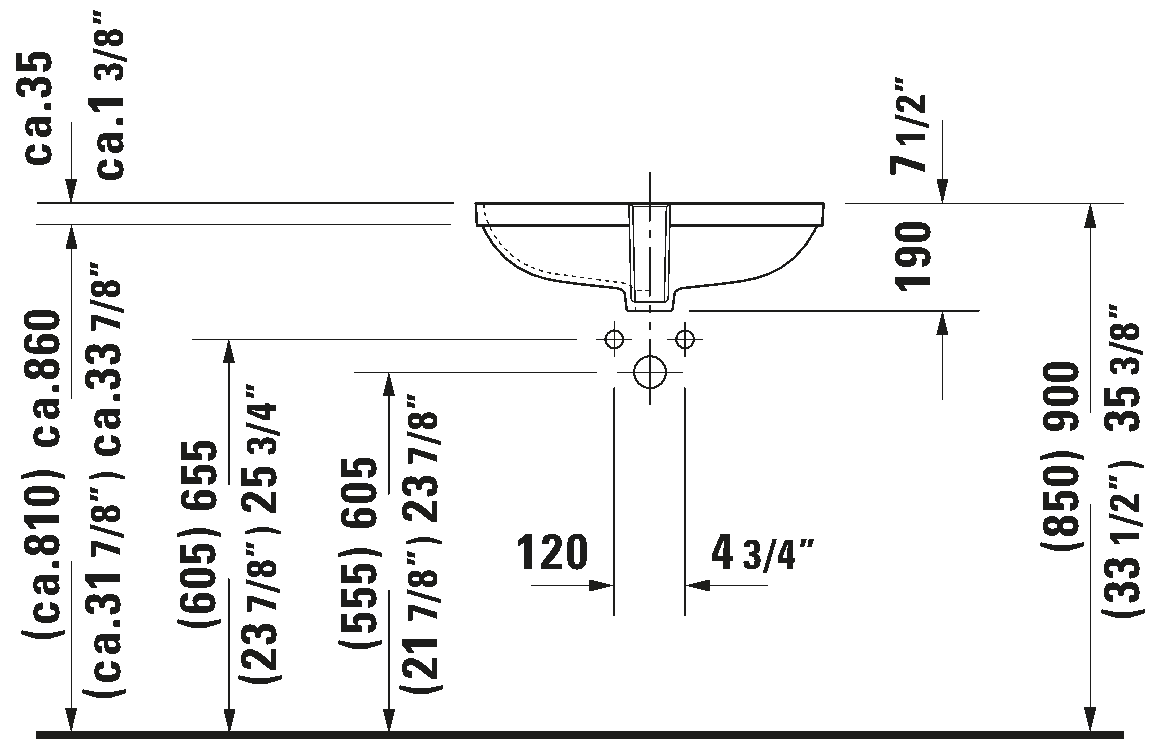

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
