Categories Shower trays Architec #720252

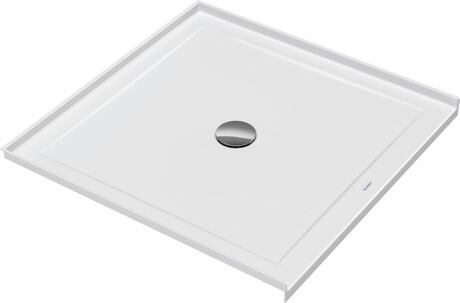

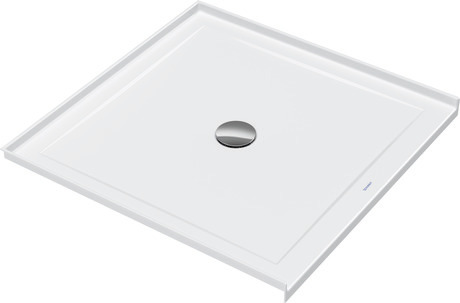

Shower Base #720252
Design by Prof. Frank Huster
Item may differ from picture. Decorations and accessories are not included.
Top Downloads
Square, Panel, Material: Sanitary acrylic, Tile flange, Drain orientation: Middle, Height: 2 "
Variants
select| White, ADA: Yes, cC/IAPMO®: Yes | 36 "x2 " | 33.069 lb | 720252000000090 | $ 620.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Accessory for shower trays
| Dimension | Weight | Order number | ||
|
Shower Drain | 4 3/8" | 0.441 lb | 792920 |
| Outlet: vertical, Diameter of drain hole: 4 1/8 ", ADA: Yes |
Downloads
Hint:
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
Series
