Series Vero Sinks #032912
Wall Mounted Sink #032912
Design by Duravit
/website/html/default/0205.us-en.html?p=94078

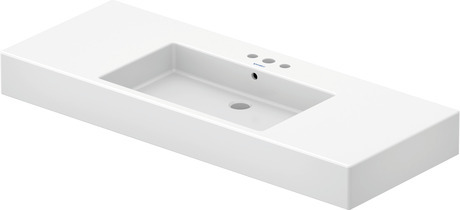

Wall Mounted Sink, 0329120000 White High Gloss, Number of basins: 1 Middle, Number of faucet holes: 1 Middle, Overflow: Yes
Item may differ from picture. Decorations and accessories are not included.
Rectangular, Includes faucet deck: Yes, Underside glazed, Back side glazed: No, 49 1/4 ", ADA: Yes, cUPC listed: Yes
Space-saving siphon is recommended in conjunction with vanity unit / To attach washbasins from a size of 1000 mm, two attachments with article no. # 6951000000 are required
Dimension
Variants
selectp White High Gloss, Number of basins: 1 Middle, Number of faucet holes: 1 Middle, Overflow: Yes |
49 1/4 "x6 3/4 " | 80.028 lb | 0329120000 | $ 1,785.00 * | |
p White High Gloss, Number of basins: 1 Middle, Number of faucet holes: 1 Middle, Overflow: Yes |
49 1/4 "x6 3/4 " | 80.028 lb | 0329120000 | $ 1,785.00 * | |
ppp White High Gloss, Number of basins: 1 Middle, Number of faucet holes: 3 Middle, Overflow: Yes, Soap dispenser position: Left |
49 1/4 "x6 3/4 " | 80.028 lb | 0329120030 | $ 1,785.00 * |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Spare parts
Dimension | Weight | Order number | ||
|
Towel Bar | 47 1/2" | 1.455 lb | 003034 |
Number of arms: | ||||
|
P-Trap | 2 3/4" | 3.307 lb | 005036 |
Material: Brass, Outlet: horizontal, Suitable for Wall Mounted Sink |
Spare parts
Suitable products
Downloads
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com

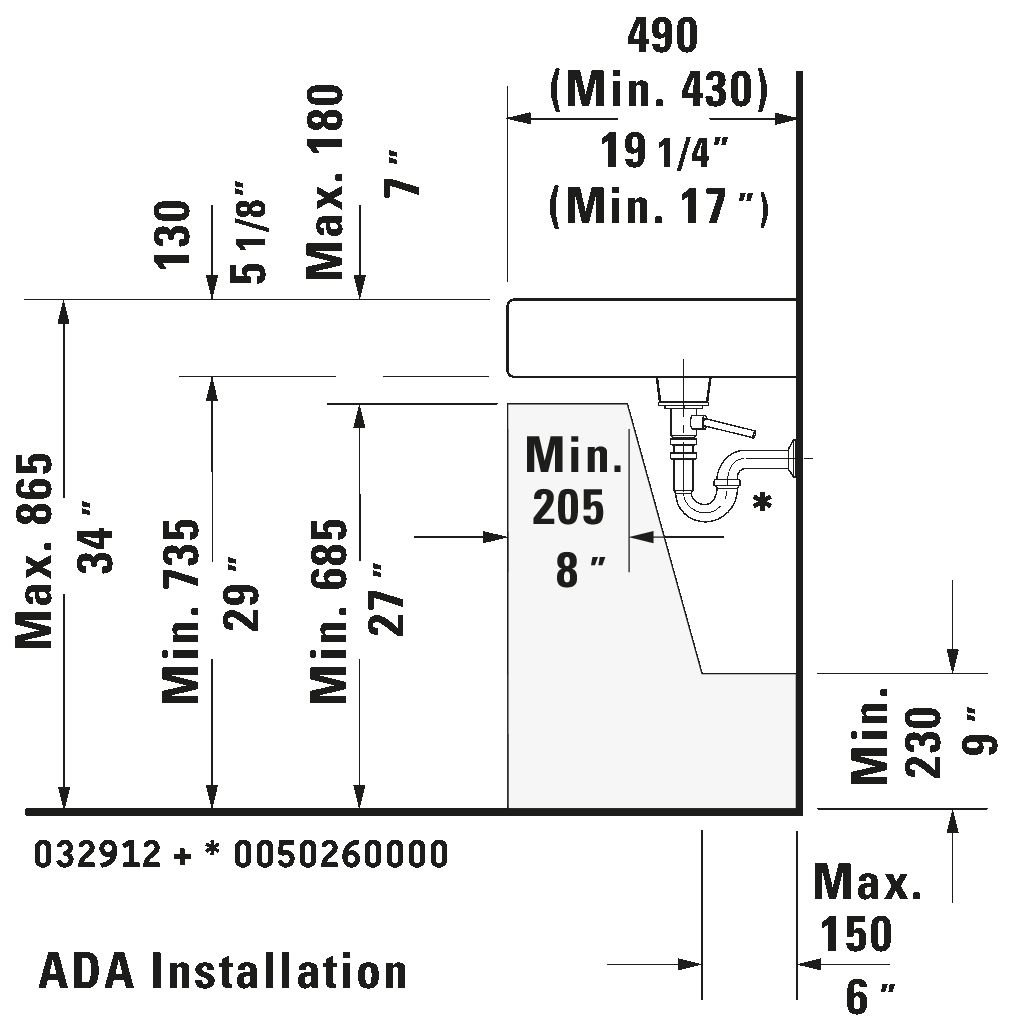

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
