Series Architec Shower trays #720250
Shower tray with panel #720250
Design by Duravit

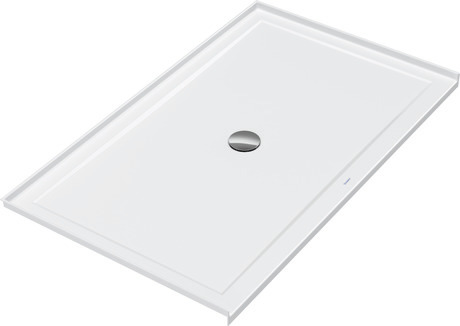

Shower tray with panel, 720250
Item may differ from picture. Decorations and accessories are not included.
rectangle, with integrated panel and flange, central outlet, Sanitary acrylic, 2 1/2" Inch
* Complies with the following standards: CSA B45.5/IAPMO Z124, A grid drain or similar should be used in conjunction with a p-trap under the floor. A 4" grid drain is necessary for shower trays with a 3 1/2" (90 mm) outlet.
|60" x 36" Inch|
|Color 00, Shower tray||60" x 36" Inch||52.9 lb||720250000000090||870.00 $ *|
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
