Urinal ME by Starck Dry #281430
Design by Philippe Starck
Urinal ME by Starck Dry, 281430
waterless, horizontal outlet Ø 2", air trap, cover and hardware included, cC/IAPMO® listed
Not available with WonderGliss
|model without fly||11 3/4" x 14" Inch||31.3 lb||2814300000|
||Type30 flush plate, single flush||5 1/8" x 5 1/8" Inch||1.2 lb||116017|
||Geberit carrier||19 3/4" x 3" Inch||27 lb||111625|
||Special cleaner||7.9 lb||005062|
|for waterless urinals, with spray top, 6 bottles 16.9 oz each|
||Air trap incl. key-ring||100384|

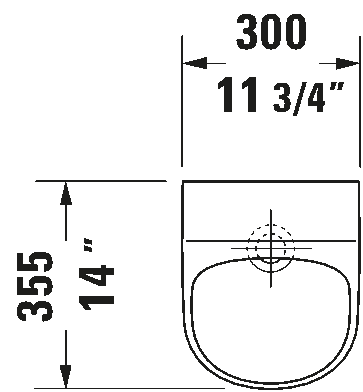

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Care instructionsChrome_PAL_56948_14_09_1_booklet.pdf - UrinaleDry_Serviceposter_Urinal_56809_17_01_3_100342_100343_100384.pdf - Ceramic_PAL_56949_15_10_2_booklet.pdf ...
