Series Happy D.2 Washbasins #231460
Washbowl #231460
Design by sieger design
/website/html/default/0211.us-en.html?p=1198298

Washbowl, 2314600000





Item may differ from picture. Decorations and accessories are not included.
ground, with overflow, without faucet deck, hardware included, overflow clip Chrome included, cUPC® listed*, 23 5/8" Inch
* Complies with following standards: ASME A112.19.2/CSA B45.1
Variants
• |
23 5/8" x 15 3/4" Inch | 30 lb | 2314600000 | 560.00 $ * |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Dimension | Weight | Order number | ||
![]() |
Push button drain assembly | 2" Inch | 0.8 lb | 005052 |
for washbasins with overflow |
Spare parts
Suitable products
-
Vanity unit for console wall-mounted#XS4901
39 3/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4902
47 1/4" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4910
31 1/2" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4911
39 3/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4912
47 1/4" x 21 5/8" Inch
-
Vanity unit for console wall-mounted#XS4903 L/R
55 1/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4904 R/L
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4913 L/R
55 1/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4914 L/R
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4906 B
55 1/8" x 2" Inch
-
Vanity unit for console wall-mounted#XS4907 B
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4916 B
55 1/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted#XS4917 B
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4941
39 3/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4971
39 3/8" x 21 5/8" Inch
-
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4942 L/M/R
51 1/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4972
51 1/8" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4944 L/R
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4946 B
63" x 21 5/8" Inch -
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4973 L/R
63" x 21 5/8" Inch
-
Vanity unit for console wall-mounted, for above-counter basin Happy D.2 Plus, for above-counter basin Happy D.2#HP4974 B
63" x 21 5/8" Inch -
Console for above-counter basin and vanity basin, Thickness console 1 3/4"#LC102C
21 5/8" Inch -
Console for above-counter basin and vanity basin, Thickness console 1 3/4"#LC103C
21 5/8" Inch -
Console for above-counter basin and vanity basin, Thickness console 1 1/8"#LC106C
21 5/8" Inch -
Console for above-counter basin and vanity basin, Thickness console 1 1/8"#LC107C
21 5/8" Inch
-
Console for above-counter basin and vanity basin Compact, Thickness console 1 3/4"#LC100C
18 7/8" Inch -
Console for above-counter basin and vanity basin Compact, Thickness console 1 3/4"#LC101C
18 7/8" Inch -
Console for above-counter basin and vanity basin Compact, Thickness console 1 1/8"#LC104C
18 7/8" Inch -
Console for above-counter basin and vanity basin Compact, Thickness console 1 1/8"#LC105C
18 7/8" Inch -
Vanity unit wall-mounted#WT4985
31 1/2" x 21 5/8" Inch
Downloads
File filter
-
Revit RFA
-
Care instructions
-
Installation instructions
-
Cut-out template
-

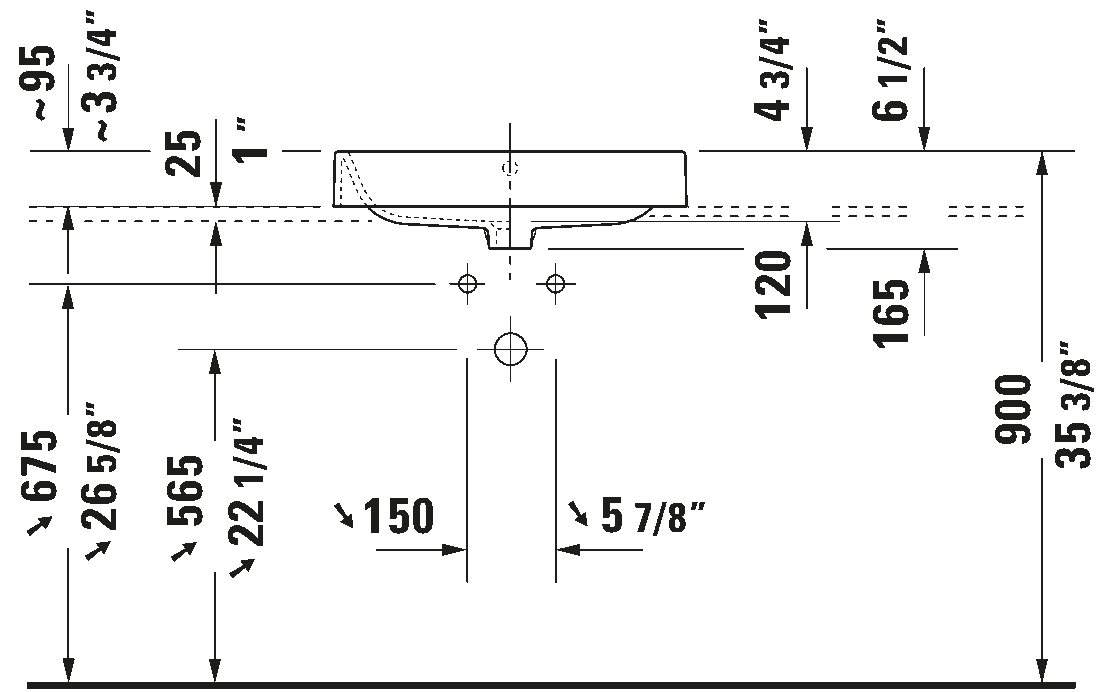

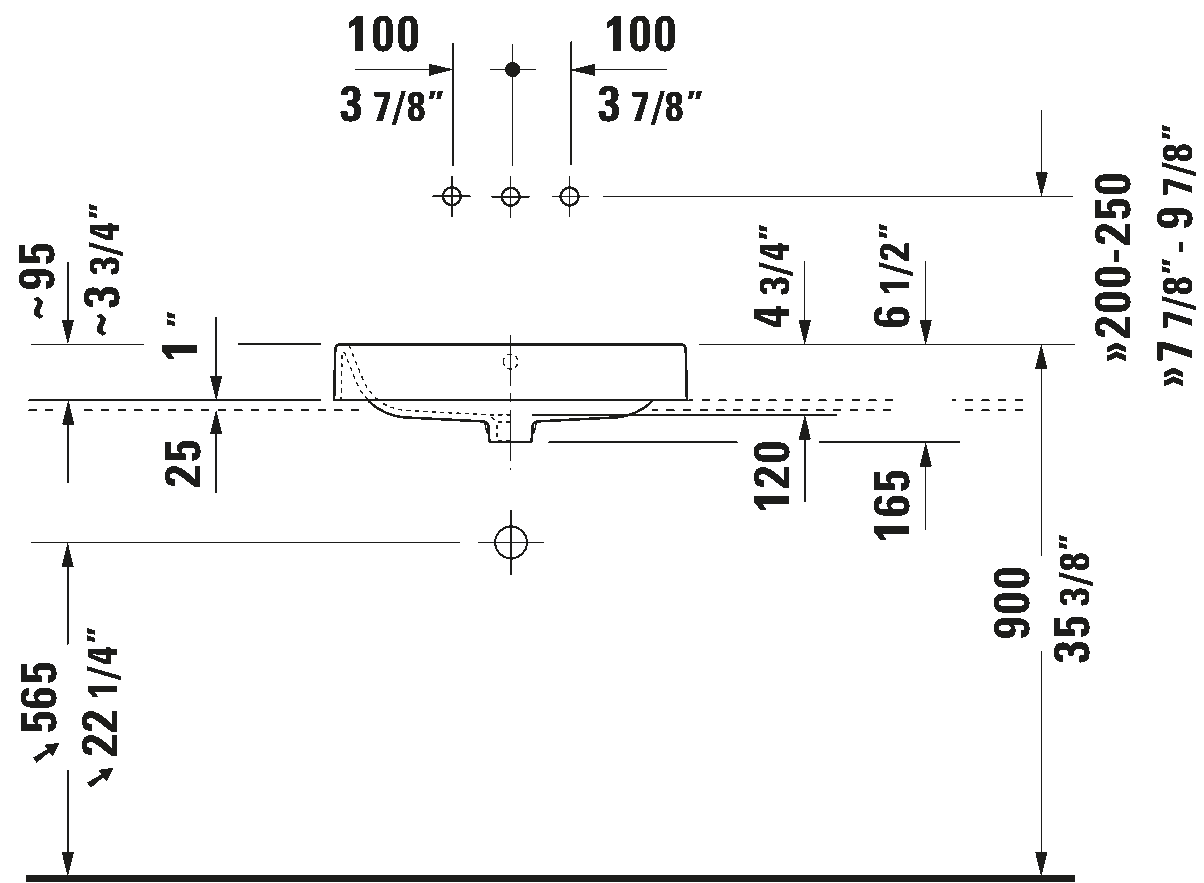

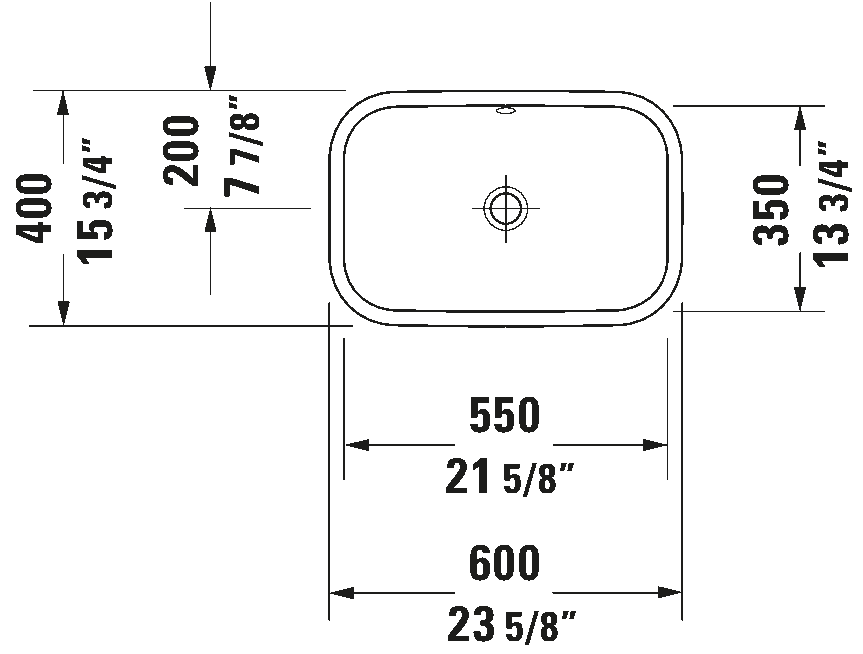

Technical drawings (TIFF)
-
CAD drawings 2D (DWG)
-
CAD drawings 2D (DXF)
-
CAD drawings 3D
-
CAD drawings 3D (DWG)
-
CAD drawings 3D (DXF)
-
CAD drawings 3D (IGS)
-
CAD drawings 3D (STP)
-
Product images (TIFF)
-
Warranty terms and conditions
-
Product images (TIFF)
-
Documents (PDF)
- Revit RFA
- Care instructions
- Installation instructions
- Cut-out template
- Technical drawings (TIFF)
- CAD drawings 2D (DWG)
- CAD drawings 2D (DXF)
- CAD drawings 3D
- CAD drawings 3D (DWG)
- CAD drawings 3D (DXF)
- CAD drawings 3D (IGS)
- CAD drawings 3D (STP)
- Product images (TIFF)
- Warranty terms and conditions
- Product images (TIFF)
- Documents (PDF)
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com
Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
