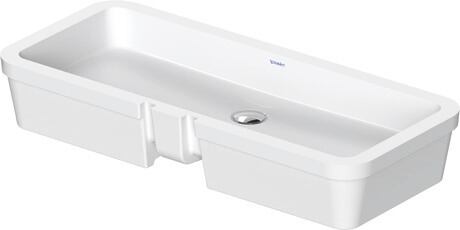

Series Vero Air Washbasins #038480
Vanity basin #038480
Design by Duravit
Vanity basin, 038480
Item may differ from picture. Decorations and accessories are not included.
undermount basin, with overflow, without faucet deck, hardware included, cUPC® listed*, 31 1/2" Inch
* Complies with following standards: ASME A112.19.2/CSA B45.1, Measurements of undercounter models represent interior measurements
|31 1/2" Inch|
|31 1/2" x 12 1/4" Inch||0384800017||635.00 $ *|
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
||Push button drain assembly||2" Inch||0.8 lb||005052|
|for washbasins with overflow|
||Design Siphon||3.3 lb||005036|
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or firstname.lastname@example.org

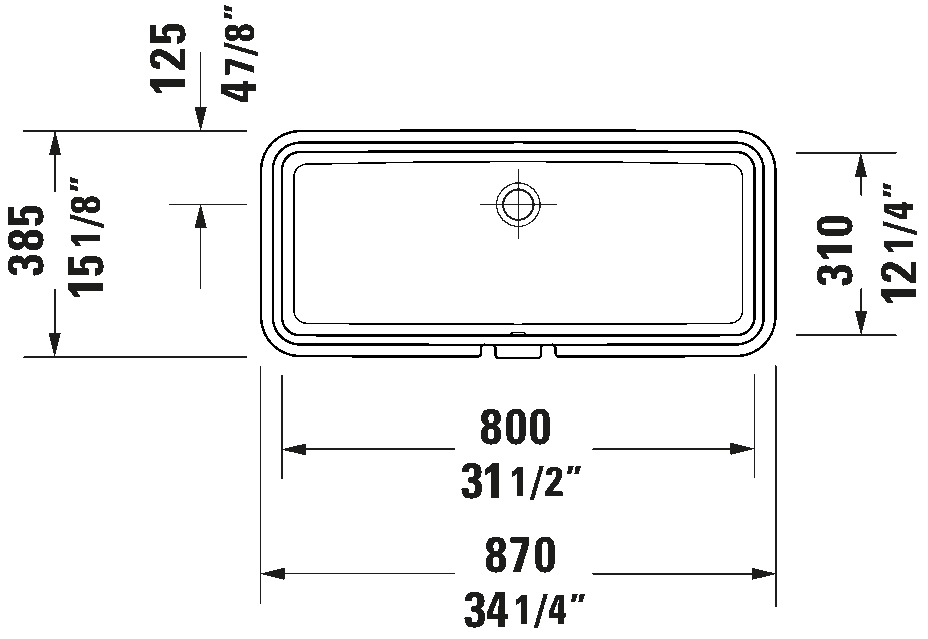

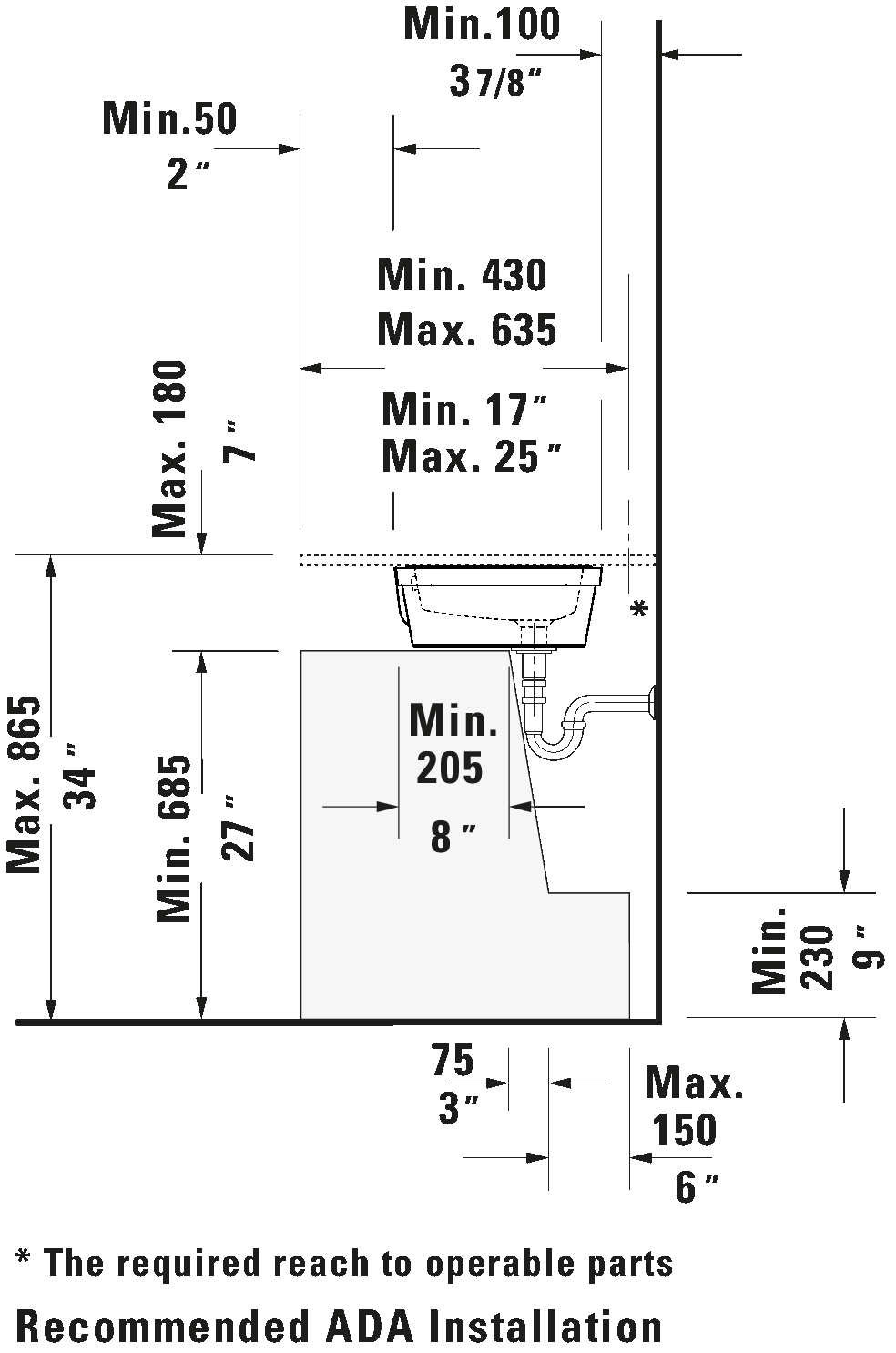

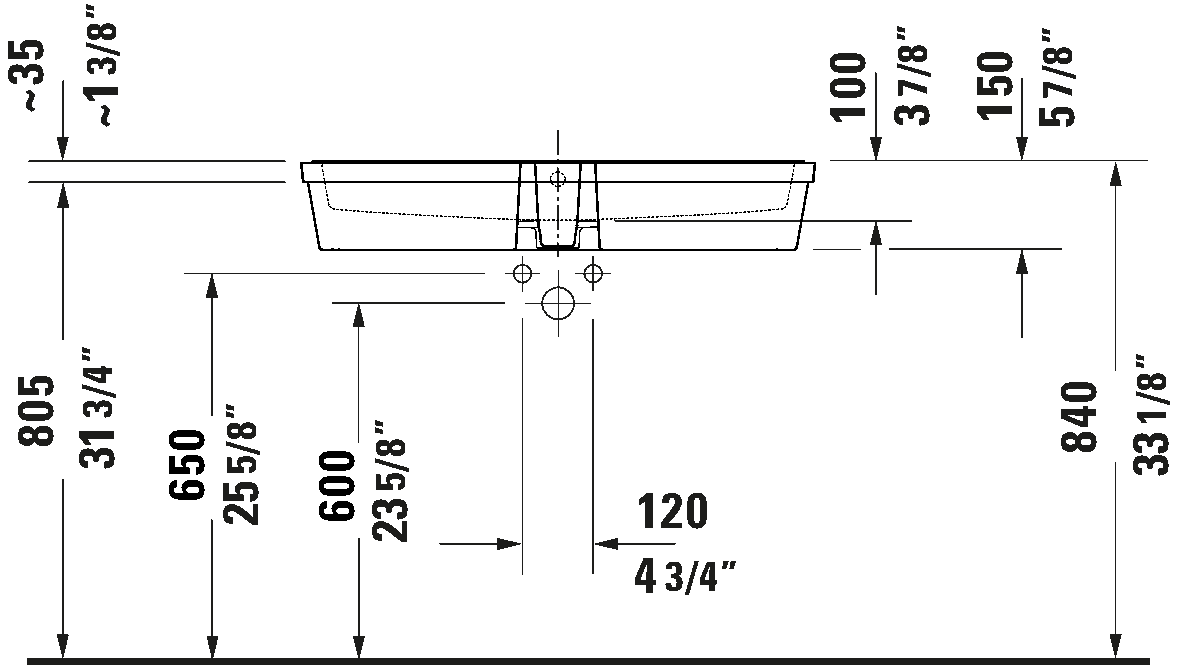

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
