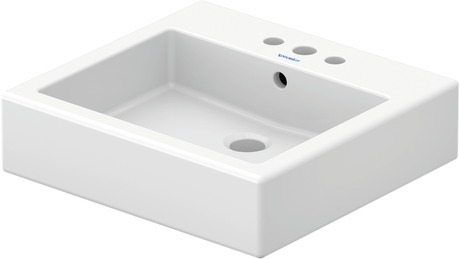

Series Vero Sinks #045250
Vessel Sink #045250
Design by Duravit
Item may differ from picture. Decorations and accessories are not included.
Rectangular, Includes faucet deck: Yes, Ground, Back side glazed: Yes, 19 5/8 ", cUPC listed: Yes
Variants
selectp White High Gloss, Number of basins: 1 Middle, Number of faucet holes: 1 Middle, Overflow: Yes |
19 5/8 "x6 7/8 " | 35.715 lb | 0452500000 | $ 670.00 * | |
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
Spare parts
| Dimension | Weight | Order number | ||
|
P-Trap | 2 3/4" | 3.307 lb | 005036 |
| Material: Brass, Outlet: horizontal, Suitable for Wall Mounted Sink |
Downloads
Hint:
CAD files should not be used for computer-controlled (CNC) cutting of countertops and are for space-planning & room rendering purposes only. If you wish to order a cut-out template, please contact customer service at 888-DURAVIT or info@us.duravit.com

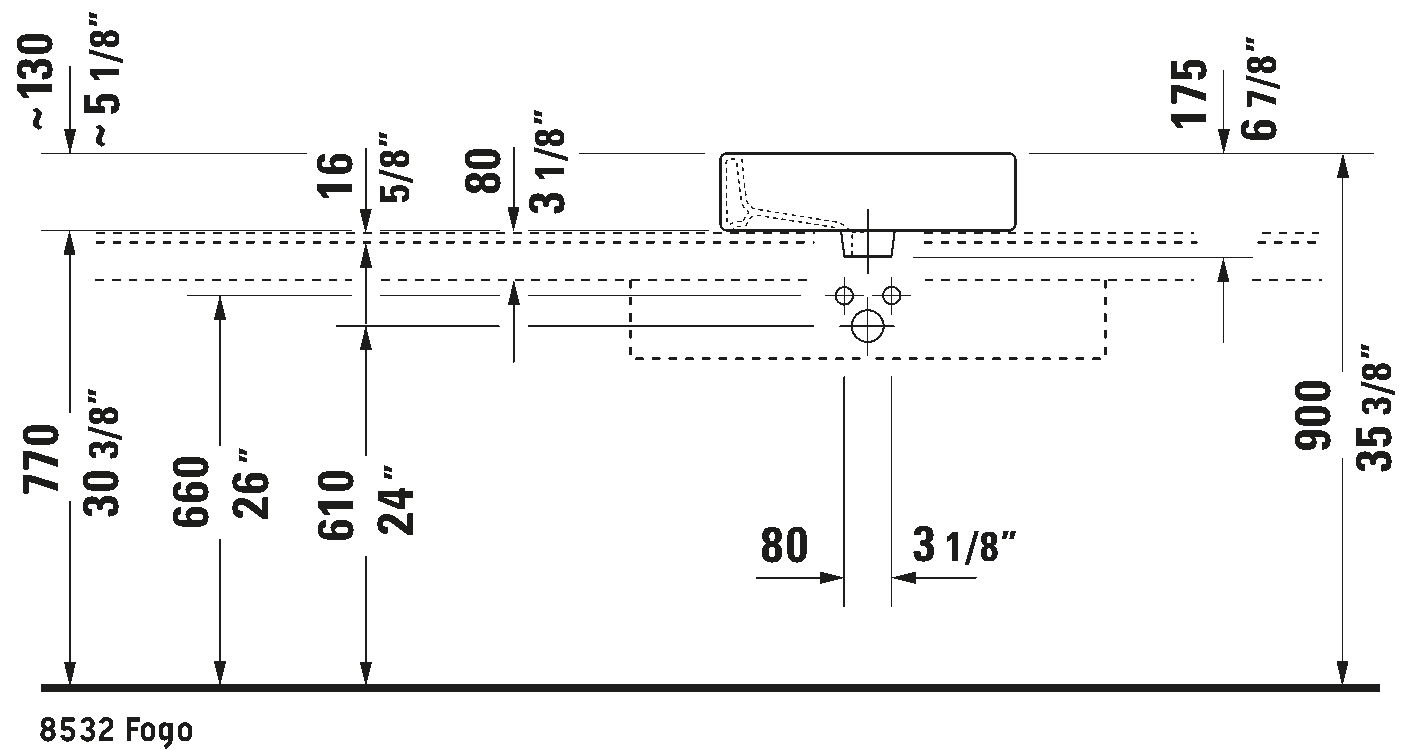

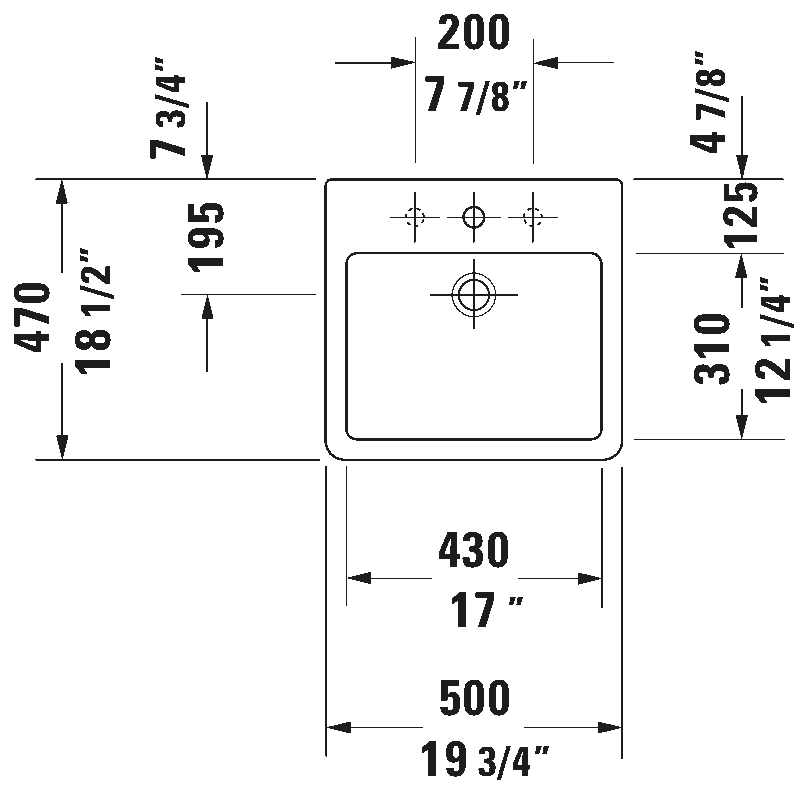

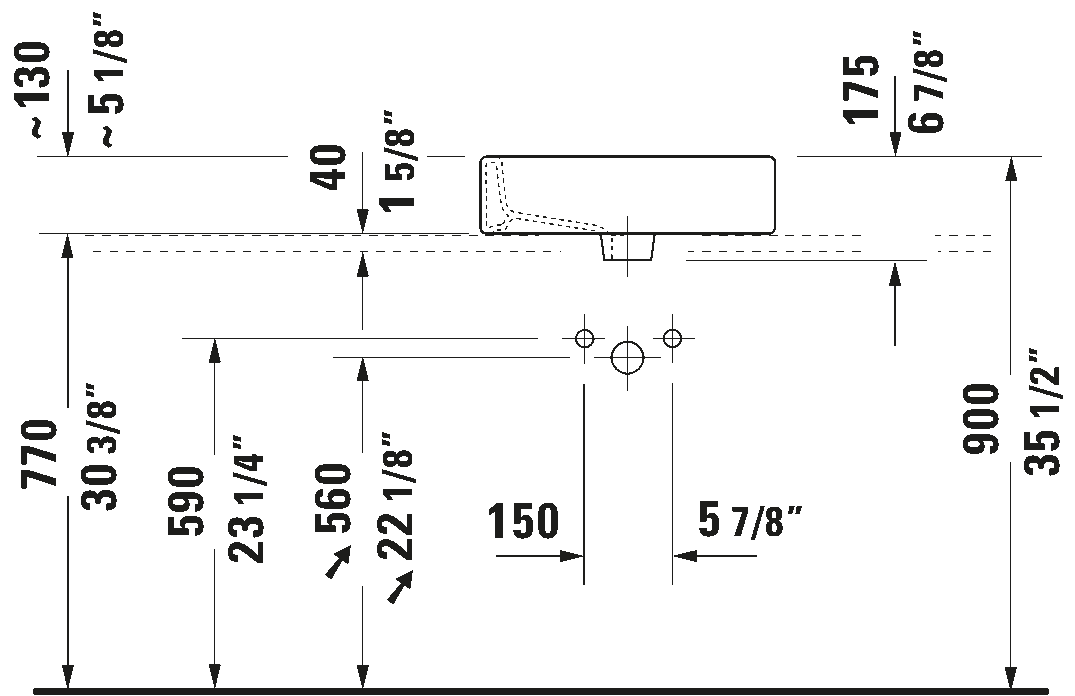

Remarks: Dimensions shown in downloads shall not be used for cut-out templates. Cut-out templates are available upon request. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch and mm, are drawn on a scale of 1:20 and are non-binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
BIM (building information modeling) files
Instructions
Planning data
Product documentation
